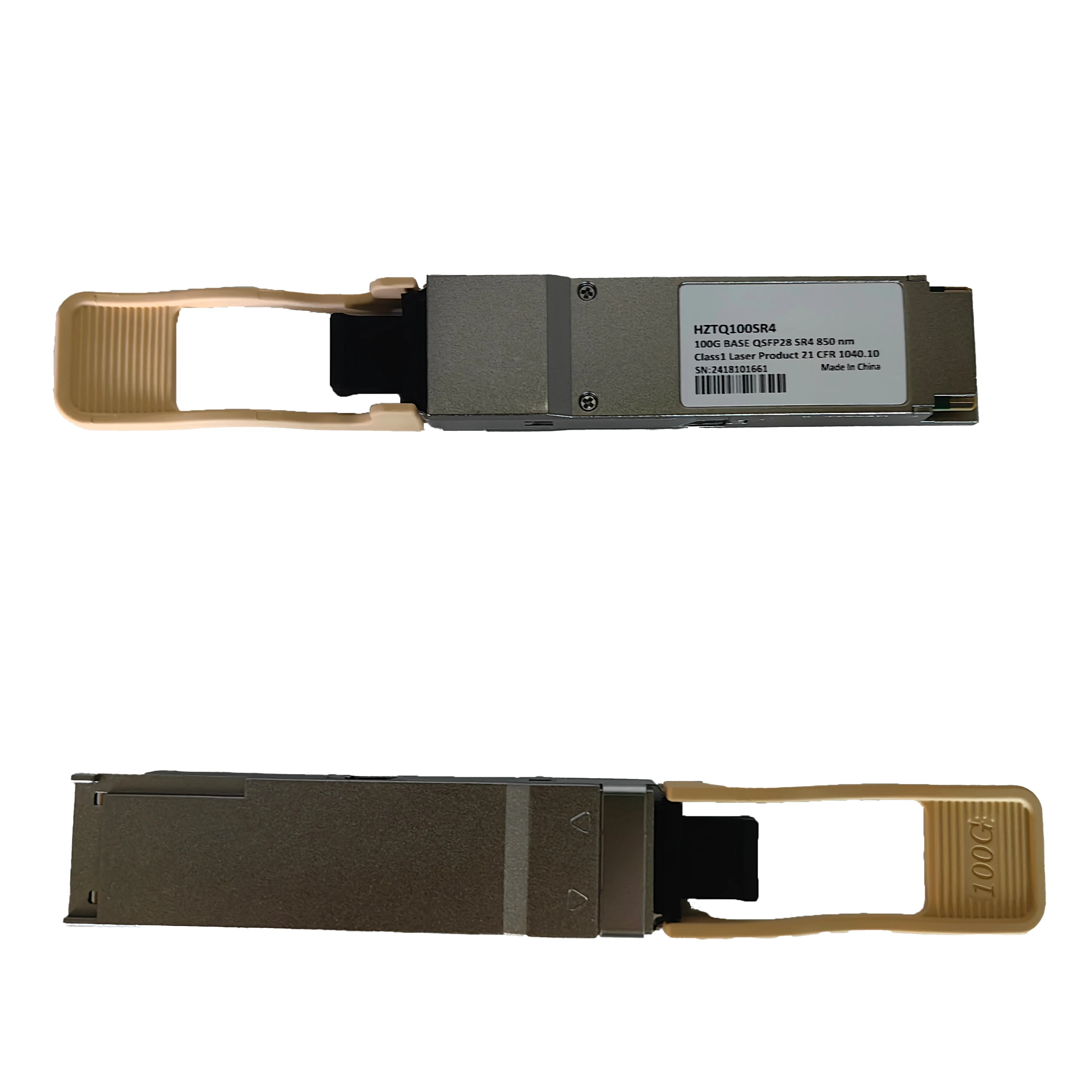

HZTQ100SR4 100G QSFP28 SR4 Optical Transceiver Module with MPO-12 Connector for OM4 Multimode Fiber 100Gbps Data Transmission

Name: HZTQ100SR4 100G QSFP28 SR4 Optical Transceiver Module with MPO12 Connector for OM4 Multimode Fiber 100Gbps Data Transmission
Brand: HengzhengTC
Price: 28 USD

Cheap HZTQ100SR4 100G QSFP28 SR4 Optical Transceiver Module with MPO-12 Connector for OM4 Multimode Fiber 100Gbps Data Transmission for sale

Model Number : HZTQ100SR4

Place of Origin : Beijing, China

Brand Name : HengzhengTC

MOQ : 1 piece

Price : $28 -50/ piece

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details : box

Fiber Type : OM4 multimode fiber 100m

Use : Data center

Port : QSFP28

Power Source : 3.3V+5%

Connector Type : MPO-12, MPO-12

Power - Minimum Receivable : ≤2.5W

Application : Data center, enterprise network

Network type : 100G Ethernet,InfiniBand QDR

Wavelength : 850nm

Ports : QSFP28

transmission speed : 4 * 25Gb/s

Warranty Time : 1 years

Contact Now

Product Description

product model	QSFP28-100G-SR4
Package type	QSFP28 standard package
Network protocol support	100GBASE-SR4 Ethernet /InfiniBand EDR/OTN OTU4
Connector type	MPO-12 core female (cross Type B)
Optical fiber compatibility	OM3/OM4Multimode fiber
Electrical interface	38 Contact Edge Connector
emission wavelength	850nm VCSELarray
Emission optical power	-8.4dBm ~ +2.4dBm
receiving sensitivity	≤-8.5dBm
extinction ratio	≥2dB
supply voltage	3.3V ±5%
Typical power consumption	≤2.5W
Maximum power consumption	3.5W
Channel configuration	4×25.78125Gbps NRZ
Signal modulation	NRZencode
transmission delay	<100ns
Working temperature	0°C ~ +70°C
Storage temperature	-40°C ~ +85°C
Working humidity	5%~95%Noncondensation
DDM monitoring	Support real-time monitoring of optical power/temperature/voltage

HZTQ100SR4

The core advantages of 100G QSFP28 SR4 optical module are the perfect combination of high performance, high compatibility and high cost performance: as the mainstream scheme of short-distance interconnection in data center, it realizes 100Gbps high-speed bandwidth through 4-channel 25G NRZ parallel transmission technology, and can reach 100 meters transmission distance (OM3 reaches 70 meters) on OM4 multimode fiber, while maintaining ultra-low typical power consumption of only 2.5W; Its standard QSFP28 package and MPO-12 interface support hot plug, are compatible with 100GBASE-SR4 Ethernet, InfiniBand EDR and OTN multi-protocols, and can flexibly connect 25G devices through the 1: 4 split function; The built-in DDM digital diagnosis function can monitor key parameters such as optical power and temperature in real time, and cooperate with the plug-and-play characteristics of mainstream manufacturers such as Huawei and Cisco to provide stable and reliable high-speed connection solutions for AI clusters, storage networks and high-performance computing scenarios.
